Agricultural Irrigation | Harvel Agricultural Irrigation

Azud Drip Compact

Diameter (mm) : 12, 16 & 20
Dripper spacing (cm) to 150
Discharge (lph) : 1.6, 2.0, 2.2, 3.0 & 4.0.
Applications : Row crops, vegetables &
nurseries, greenhouses etc
Dynamic, Lineal and Mechanical protection against clogging
Higher Uniformity
Wide Labyrinth
Wide Filtration area
Protection against UV rays

Azud Pro

Diameter (mm) : 16 & 20
Dripper spacing (cm) : 20 to 100
Discharge (lph) : 1.0, 1.5, 2.2 & 4.0.
Applications : Intensive crops, tree plantations & green house

Azud Premier Line

Diameter (mm) : 16 & 20
Dripper spacing (cm) : 20 to 200
Discharge (lph) : 2.2 & 4.0.
Applications : Undulated land row crops, vegetables, nurseries, greenhouses etc.

Azud Line

Diameter (mm) : 12, 16 & 22
Dripper spacing (cm) : 15 to 75
Discharge (lph) : 1.1, 1.4, 2.1 & 3.8
Applications : Row crops, vegetables, nurseries, greenhouse, surface and subsurface irrigation

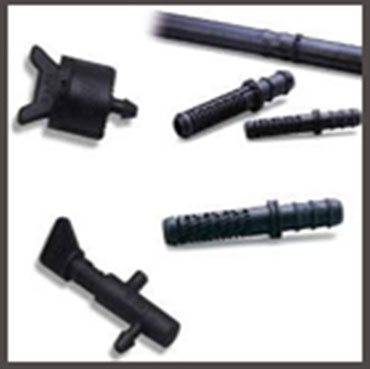

Azud ASR

Model : S-25 & S-50
Discharge (lph) : 4.0 & 8.0, 2.6 & 4.0
Applications : Tree Crops, orchard etc.

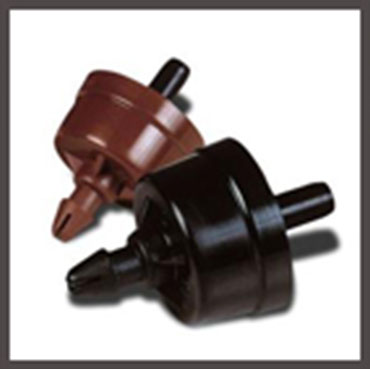

Mbtech

Discharge (lph) : 2.0, 3.0, 4.0 8.0 & 12.0
Applications : Tree Crops, orchard, undulating lands etc.

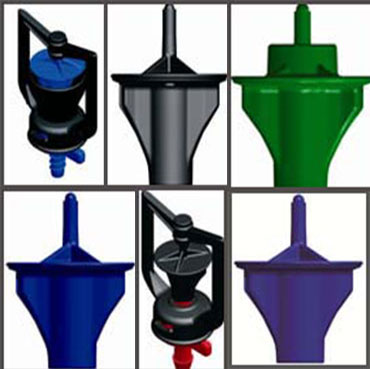

Micro Sprinklers

Nozzle Size (mm) : 0.80-1.9
Diameter (meter) : 0.9-9
Discharge (lph) : 31-164
Operating Pressure(bar) : 1.3 2.5
Applications : Greenhouses, orchards, vegetables, nurseries etc.
Range includes Anti –insect device and stream deflector swivel
Highest coefficient of uniformity
Best material of construction ensure better performance and long life

Mini Sprinklers

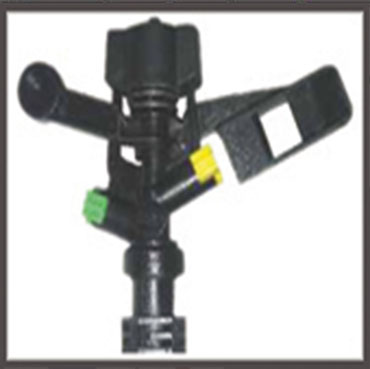

Mini Sprinkler
Inlet size Size (in)                            : ½
Radius Coverage (m)                : 6-12
Operating Pressure (kg/cm2)    : 1.5 – 4
Discharge (lph)                         : 325-950
Applications                             : Field Crops & Fodder Crops

*Water savings. *Improved production on marginal land. *Crop protection from frost

Overhead Sprinkler

Overhead Sprinkler:
Intel Size (in)                            : ¾
Radius Coverage (m)                    : 12.2-14
Operating Pressure (kg/cm2)     : 1-4
Discharge (lph)                         :1494 – 2868
Applications : Field Crops, Fodder Crops, Turf & Landscape.

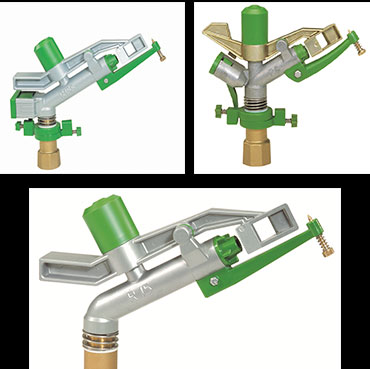

Rain Gun

Rain Gun
Radius Coverage (m)       :14-52.1
Discharge (lph)      : 1,300 - 43,800
Operating Pressure (kg/cm2)     : 2-7.5
Application  p; : Vegetables, Field crops, Medicinal plants, Cash Crop, Landscaping, Sports ground and Dust suppression.

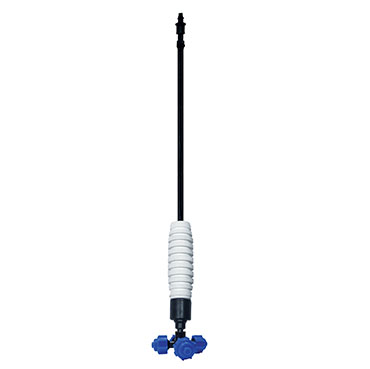

Foggers

Models : Low Pressure High Pressure
Colour of LPD : Black Orange
Opening Pressure(bar) : 2.0 3.2
Closing Pressure (bar) : 1 2
Working Pressure(bar) : 2-6 4-8
Nozzle : 4
Discharge : 32 lph ( 8 lph/ nozzle)
Particle Size (micron) : upto 100
Applications : Greenhouse, nurseries, cattle farms, poultry farms and cooling of indoor/outdoor environments.
Ensure ideal microclimate control
Leak proof: Pressurized opening & closing system
Easy Installation

Misters

Nozzle Size (mm) : 0.80-1.3
Diameter (meter) : 0.9-9
Discharge (lph) : 27-81
Operating Pressure(bar) : 1.5 - 3
Applications : Greenhouses, Poultry Farms etc.

Easy assembly and handling
Less maintenance required

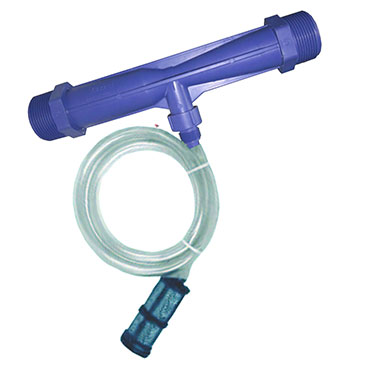

Mazzei Venturi

Mazzei Venturi
Size (Inches): ¾, 1, 1.5 & 2

Precise chemical applications for irrigation
Low cost solution as compared to other injection methods
Available in polypropylene(PP)

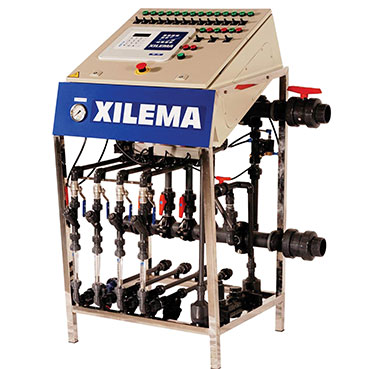

Xilema

Size (Inches): ¾, 1, 1.5 & 2

pH & EC control with double pH sensor option
Emergency alarm for low or high pressure, EC & Ph flow etc.
PC & mobile communication

Agriculture Irrigation Products
